Non-Standard Collapsible Pallet Box

Non-standard collapsible containers (also known as custom honeycomb panel containers) consist primarily of PP honeycomb panel sleeves, HDPE top and bottom covers, and a pallet base, constituting a heavy-duty, foldable, and recyclable logistics packaging solution. Tailored specifically for irregularly shaped, oversized, precision, or high-value goods, these containers are widely utilized across industries such as automotive components, new energy, electronics and appliances, medical devices, furniture, and heavy machinery. They serve as a complete replacement for traditional wooden crates, offering advantages such as exemption from fumigation requirements (making them suitable for export), as well as resistance to water, moisture, and aging.

Basic Components

Consistent with the structure of standard collapsible pallet boxes, it consists of three parts:

• Base (Pallet): Made of PP plastic or metal; provides load-bearing support and facilitates forklift access.

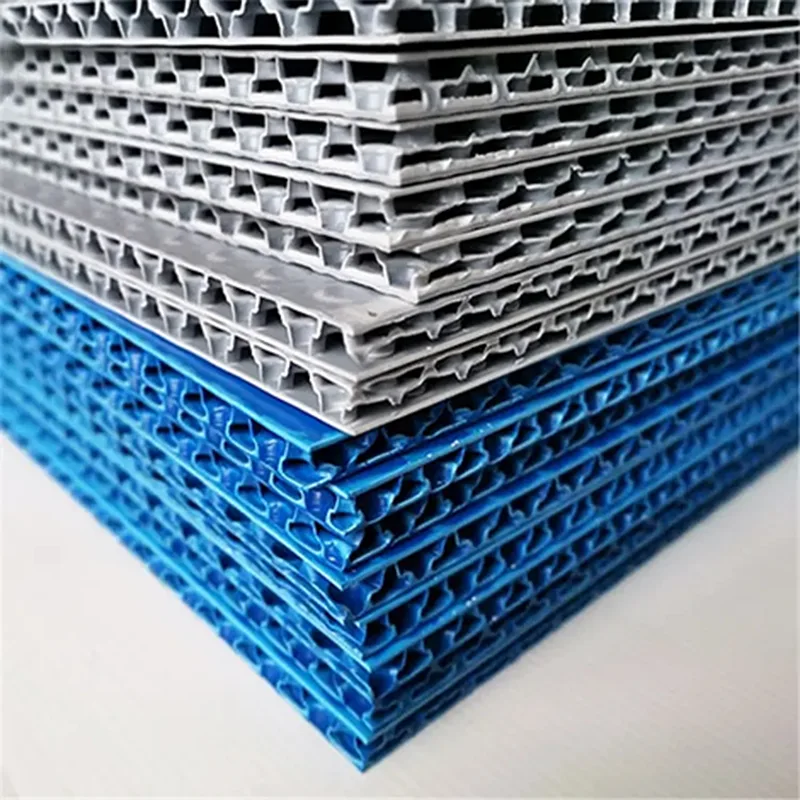

• Collapsible Walls: Made of PP honeycomb board (the predominant material) or solid plastic panels; designed to be foldable.

• Top and Bottom Covers (Lid): Made of PP material; available in various types, such as flat lids or blow-molded lids.

·

Why Choose Non-Standard Solutions?

Completely Customizable Dimensions

Length, width, and height are tailored precisely to the actual measurements of the cargo; capable of producing extra-long, extra-wide, or extra-high irregular-shaped crates, with dimensional tolerances controlled within ±2mm.

No Mold Fees Required

Constructed via the assembly of a steel frame combined with honeycomb panels or sheet metal; cost-effective even for small batches, making it ideal for prototyping, trial production, and urgent orders.

Flexible and Adjustable Load-Bearing Capacity

Capable of handling light loads of a few hundred kilograms up to heavy loads exceeding 1.5 tons; load-bearing strength can be further enhanced through the addition of reinforcing ribs or angle-iron steel frames.

Foldable and Space-Saving

When empty, the volume of the crate is reduced by approximately 75%–85% upon folding, resulting in lower storage costs and reduced return shipping expenses.

Durable and Reusable

Constructed from a combination of PP honeycomb panels and HDPE, offering excellent impact resistance as well as water and moisture protection; boasts a service life of over 3 years and can withstand up to 50,000 folding cycles.

·

Appearance Customization

- Colors: Gray / Blue / Black / White / Custom Colors

- Printing: Logo, Barcodes, Warning Labels, Company Information

- Branding: Silk Screening, Laminated Labels, Hot Stamping

Common Manufacturing Processes and Comparisons

Steel Frame + Honeycomb Panel (Most Common): Moderate cost, lightweight, and high strength; suitable for most non-standard applications.

Single-Layer Thermoforming: Inexpensive and lightweight; offers moderate load-bearing capacity, making it suitable for light, bulky goods and low-budget projects.

Double-Layer Blow Molding / Thermoforming: High structural integrity, high load-bearing capacity, and long service life; requires mold fabrication and is suitable for large-volume, long-term circulation.

V. Typical Application Industries

• Automotive Components: Irregularly shaped stamped parts, chassis components, drive shafts, seats, etc.

• New Energy: Photovoltaic modules, lithium battery packs, electric motors, electronic controls

• Precision Electronics: Large-format panels, medical equipment, instrumentation

• Others: Furniture, building materials, food (sanitary grade), chemicals (corrosion-resistant), etc.

Key Considerations for Customization and Procurement

1. Provide the dimensions (length, width, and height), weight, and shape of the goods (for irregular shapes, drawings or physical samples are required).

2. Specify the stacking height, rack type, and parameters for forklifts or automated equipment.

3. Determine protection requirements (e.g., shock resistance, anti-static properties, water resistance).

4. Confirm quantity and lead time: For non-standard cartons, sampling typically takes 3–7 days, while small-batch delivery takes 1–2 weeks.
