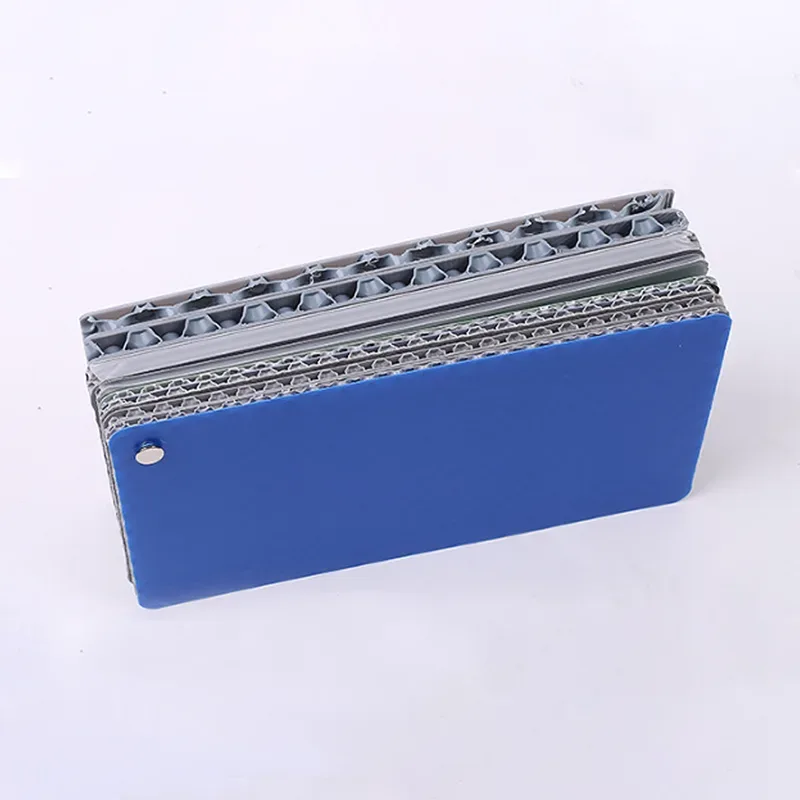

Plastic Honeycomb Sheet

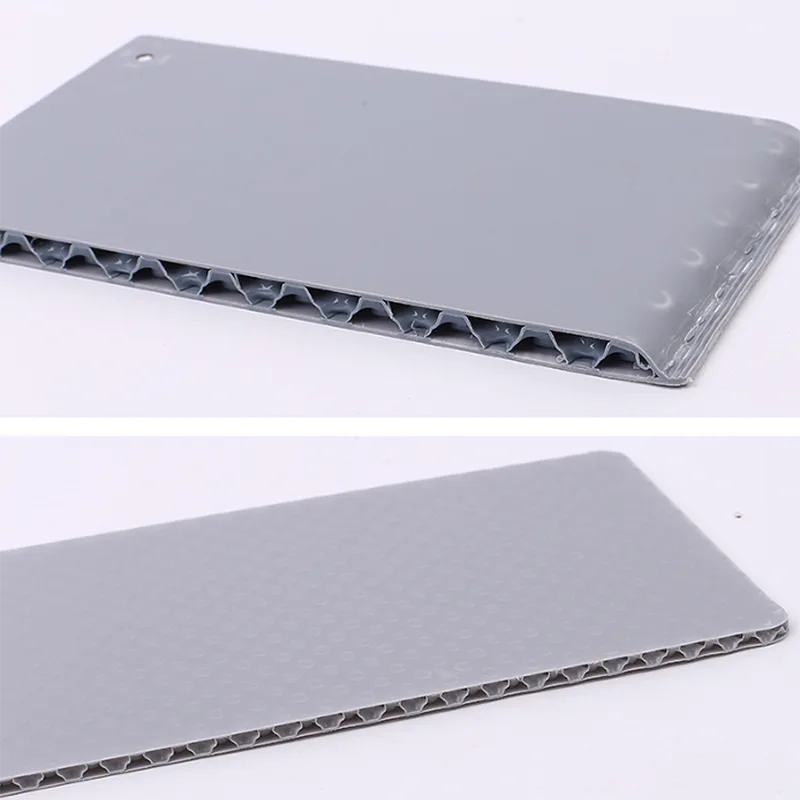

Our factory produces Plastic Honeycomb Sheet using polypropylene (PP) as the raw material. These panels are manufactured via an extrusion molding process to create a honeycomb-structured sandwich material, composed of two outer face sheets bonded to an internal honeycomb core—a design named for the cross-sectional resemblance to a beehive.

The manufacturing process employed by Juntai Packaging involves thermal compression bonding; this method ensures a glue-free, non-delaminating structure, resulting in a lightweight, eco-friendly, and innovative new type of panel that serves as an ideal substitute for traditional materials such as wood, metal, MDF, and fiberglass.

Features of Plastic Honeycomb Sheet

1. Ultra-lightweight and High-strength: Over 40% lighter than traditional panel materials, offering high structural strength and impact resistance.

2. Waterproof and Moisture-proof: Non-absorbent and resistant to mold growth, making it suitable for use in humid environments.

3. Corrosion and Weather Resistant: Resistant to acids, alkalis, and oil stains; maintains stable performance across a temperature range of -40°C to 80°C.

4. 100% Recyclable: Eco-friendly and sustainable, containing no formaldehyde or VOCs.

Core Advantages

1. Lightweight and High-Strength

With a density of only 80–200 kg/m³, Plastic Honeycomb Sheet is 40% lighter than particleboard.

Its honeycomb structure ensures uniform load distribution, offering exceptional resistance to compression, bending, and impact; furthermore, it is highly resistant to deformation and exhibits superior flatness.

2. Waterproof, Moisture-Resistant, and Corrosion-Resistant

Constructed entirely from PP material, it absorbs absolutely no water. It is resistant to water, seawater, acids, alkalis, and oil stains; even with long-term use in outdoor or humid environments, it will not rot, mildew, or rust.

3. Eco-friendly, Non-toxic, and Recyclable

Made from food-grade PP raw materials; free of formaldehyde and odors.

Production involves zero VOC emissions and allows for 100% recycling and reuse; complies with RoHS and REACH environmental standards.

4. Easy to Process and Install

Can be cut, drilled, bent, thermoformed, and welded; can be secured using screws, rivets, adhesives, or thermal bonding; surface finishes available include: glossy, matte, anti-slip, textured, printed, painted, UV-resistant, and fire-retardant.

Standard Parameters (Customizable)

Thickness: 10mm (Standard: 10mm)

Standard Dimensions: 1200×1000 / 1350×1150 / 1470×1150 / 1600×1150

Density: 80 / 100 / 120 kg/m³

Colors: White / Black / Gray / Blue / Green / Red / Natural (Customizable)

Surface Finish: Glossy / Matte / Anti-slip / Textured / Laminated / UV-Resistant / Fire-Retardant

Operating Temperature: -40°C to +80°C

Water Absorption: ≈0%

Flame Retardancy Rating: V0/V1/V2 (Optional)

Environmental Friendliness: Formaldehyde-free, Recyclable

Structure and Manufacturing Process (Visualized)

Manufacturing Process

1. PP raw material extrusion → Honeycomb core molding

2. Face panel (PP/Glass Fiber-reinforced PP) preparation

3. High-temperature hot-press lamination
