PP Hollow Sheet Pallet Collar Box Lining Board

The PP Hollow Sheet Pallet Collar Box Lining Board by China Juntai Packaging are specifically designed as internal protective inserts for use with honeycomb board collar boxes, large-scale logistics containers, and collapsible pallet collars.

Fabricated from PP honeycomb composite sheets through a process involving cutting, grooving, splicing, and bending, these liners serve primarily to partition, secure, cushion, and provide shock protection for products housed within the containers.

Their function is to prevent large items, precision components, automotive parts, and home appliance assemblies from sustaining collisions, scratches, or deformation due to compression during transportation and stacking.

Characterized by its lightweight nature, high strength, water resistance, mold resistance, recyclability, and customizability, it is widely utilized as a complementary packaging solution for collapsible pallet boxes across industries such as automotive components, precision machinery, home appliances, new energy, and warehousing and logistics.

Core Advantages

1. Honeycomb Structure

The honeycomb core layer distributes force evenly, providing excellent cushioning and shock-absorption capabilities.

Highly resistant to compression and bending, PP Hollow Sheet Pallet Collar Box Lining Board remains stable and resists collapse even under heavy stacking loads.

It effectively absorbs vibrations and impacts during transit, thereby safeguarding both the physical appearance and precision of the product.

2. Waterproof and Aging-Resistant

Constructed from PP material, it is completely non-absorbent—preventing mold growth and deformation.

Resistant to oil, grease, acids, and alkalis, it is ideally suited for use in humid workshop environments and for outdoor transport.

It boasts a long service life and is highly resistant to aging and cracking.

3. Flexible Customization

Precisely customized to fit both the collapsible pallet collar box and its contents; can be custom-manufactured on a 1:1 scale based on the box's internal dimensions.

Supports various internal configurations, including compartmentalized liners, slotted dividers, custom-molded trays, and integrated liners.

Secures products firmly to prevent shifting, thereby eliminating the risk of collision or scratching.

4. Lightweight and High-Strength

Over 50% lighter than solid wood boards or plywood; features high strength and excellent toughness, making it resistant to breakage; reduces logistical loads and lowers transportation costs.

5. Eco-Friendly and Affordable

PP Hollow Sheet Pallet Collar Box Lining Board is reusable, eco-friendly, and cost-effective; capable of repeated assembly, disassembly, cleaning, and circulation; non-toxic, odorless, and 100% recyclable; serves as a substitute for disposable paper liners and foam packaging, resulting in long-term cost savings.

6. Anti-Static Capability

Suitable for Electronics and Precision Components: Can be manufactured with anti-static honeycomb board liners (Surface Resistivity: 10⁶–10¹¹ Ω) to protect chips, PCBs, sensors, and precision instruments from electrostatic damage.

Structure and Materials

Substrate: PP Honeycomb Panel (Double-sided Panels + Honeycomb Core)

Process: CNC Cutting, Grooving, Bending, Splicing

Structure: Single-layer liner, multi-layer liner, slotted dividers, custom-shaped inserts, integrated cushioning trays.

Surface: Gloss / Matte / Anti-slip / Laminated

Product Specifications

Material: PP Honeycomb Sheet

Total Thickness: 5 mm–10 mm. Standard Sizes: Compatible with standard collapsible pallet collars. Custom dimensions (length and width) available upon request.

Colors: White / Gray / Black / Blue (Custom corporate colors available)

Load-Bearing Capacity: 50–300 kg/m². Thickness can be increased to enhance load-bearing capacity.

Processing Methods: Cutting, Slotting, Splicing, and Bending. Available in segmented, irregular, and integrated configurations.

Industries Suitable for PP Hollow Board Pallet Collar Liners

1. Automotive (Vehicles and Components)

2. Precision Machinery and Equipment Manufacturing

3. Home Appliances and 3C Electronics

4. New Energy and Energy Storage

5. Logistics, Warehousing, and Third-Party Packaging

6. High-End Collapsible Container Packaging for Export

Product Structural Types of Box Liner Panels

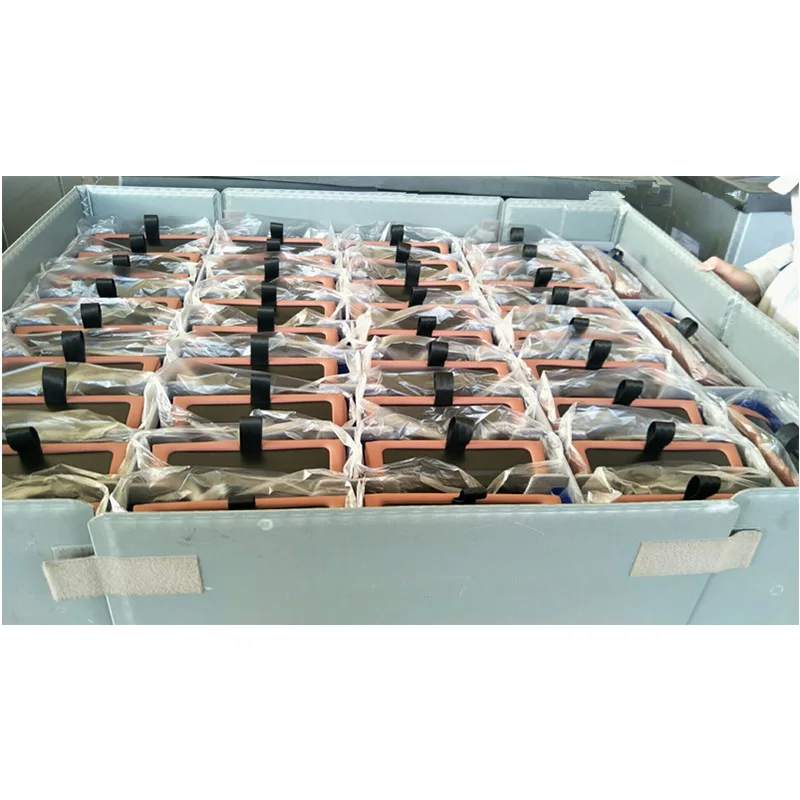

1. Flat Liner Board: Serves as a base or interlayer pad for collapsible pallet collars; offers load-bearing and compression resistance, as well as isolation and protection.

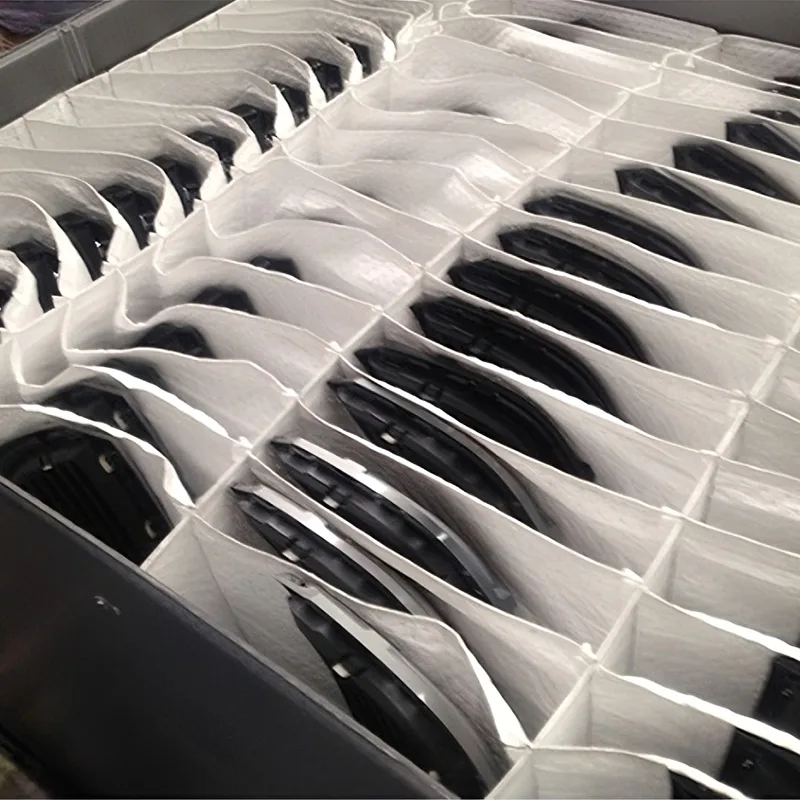

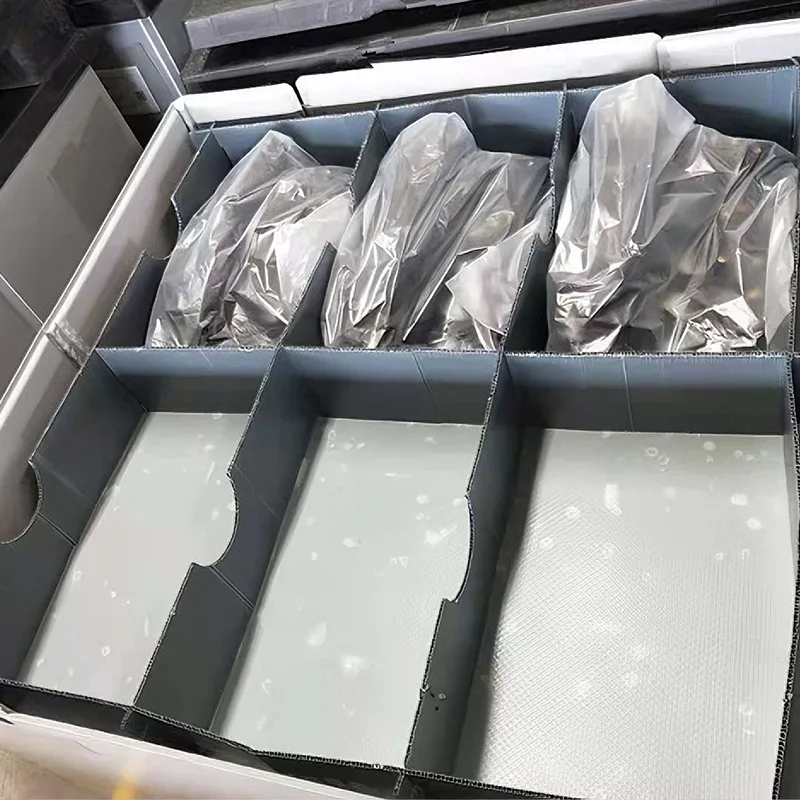

2. Grid Divider Insert: Provides multi-compartment, independent storage to prevent small items from colliding with one another.

3. Custom-Fitted Liner: Tailored specifically for large, irregularly shaped products, offering full-coverage enclosure and secure fixation.

4. Multi-Layer Stackable Liner: Provides layered protection for stacked products; ideal for use with tall pallet collars.

5. Anti-Static Liner: Designed specifically for electronics and precision components, offering protection against static electricity and electrostatic discharge.
